Sharing code between Silverlight and .NET
Currently, a Silverlight Class Library cannot be loaded by the server side project and vice versa. This despite there being very close parity in the BCL on either side. Now, I agree that sharing actual business logic between client and server is a bit of an edge case, but when it comes to data interchange, having a single codebase for you DTOs would be very useful.
Luckily, with a bit of trickery, this can be accomplished, although it would be nice if Visual Studio could just do this for you. I've done this on two different projects, once creating DTOs that were then serialized using the JSON DataContract serializer and other other time using the normal XmlSerializer.
The basic trick is this: Two separate projects can point at the same source code files (and even the integrated source control providers will play along with this game). However, playing by Visual studio rules you can't just create two projects in the same directory because the wizards treats ProjectName == DirectoryName. Here's how you get around this:
- Create a new server side Class Library, say Server.Dto.
- Create a new Silverlight Class Library, say Silverlight.Dto.
- Clean out that default Class.cs and update both to have the same default namespace Foo.Dto. Your solution should look something like this:
- Now, right-click on Silverlight.Dto and choose Remove
- Close Visual Studio
- Rename the Silverlight.Dto/Properties directory to Silverlight.Dto/Silverlight.Properties
- Copy Silverlight.Properties and Silverlight.Dto.csproj to the Server.Dto directory
- Now, and this is the tricky bit, open Silverlight.Dto.csproj in some text-editor (notepad works, but don't try to use Visual studio for this) and change the line
<Compile Include="Properties\AssemblyInfo.cs" />
to
<Compile Include="Silverlight.Properties\AssemblyInfo.cs" />
- Re-open your solution, right-click on the Solution in the Solution Explorer and choose Add -> Existing Project..., browse to Server.Dto and select Silverlight.Dto.csproj
- Add your first shared class FooDto.cs to Server.Dto (if you add it on the Silverlight side, you need to clean up a bunch of using statements).
- Select Silverlight.Dto and click the Show All Files button at the top of the panel. You should see FooDto.cs in Silverlight.Dto now
- Right-click FooDto.cs and choose Include in Project, like this:
- Voila, you now have two assemblies referencing the same code so that you can use the same code on both client and server sides. Just repeat the last couple of steps for every new class you want to share.
I know you could use a Web Service from within Silverlight and would automatically generate you the proxy on the client side. And I'd recommend that if your payload is dynamic. However, if your payload is generated occasionally by a server side program or periodic service, this methods lets you create Dto's, serialized in your favorite manner that can be consumed as static files with WebClient.
Labels: .net, c#, silverlight
Copying a Silverlight User Control from one project to another
Here's something I tracked down with no help from error messages:
When you copy a user control in Silverlight 1.1 from one project to another the Xaml that the control loads will have it's Build Action set to SilverlightPage. When you then run your project and try to create an instance of that control you'll get the ever so informative AG_E_INVALID_ARGUMENT. All you need to do to fix it, is set the Build Action to Embedded Resource again. Tada!
I love declarative definition of UI with behavior wired to static code. But man, at its current state, the debugging support for it just isn't there. I mean it's bad enough that having strings in the declarative side to link to actions that won't be updated by normal refactoring, nor will they show up as references, but at this state Xaml brings the worst part of scripting languages to compile-time checked coding:
Vague runtime errors without a stacktrace
Bah.
Labels: AG_E_INVALID_ARGUMENT, silverlight, usercontrol
Playing with Xaml and LFS
I thought it was about time to see how hard it would be to get
Live For Speed Track Maps into Xaml for use on the desktop or
Silverlight. I initially started with the LFS's SMX (simple mesh format) files, but taking triangle data and turning it into a manageable number of polygons for vector representation is proving to be an interesting exercise. I might get back to it later, but for now, have found a more productive approach.
LFS provides a file format called PTH which basically contains the drive line in world coordinates as a set of nodes for each track configuration. But here's cool part: Every node also includes orientation and the left and right distances from the node to the track edges and drivable area edges. Given the left and right edges from two nodes describes a rectangle. I decided to render this out as a series of polygons in Xaml and the results was a very usable representation of the track.
But this still generates a lot of polygons for such a relatively simple shape. I initially went down the path of just skipping over nodes and doing a reduction of detail that way. This approach, however, quickly deteriorated the detail significantly. My next approach was to take the edges of multiple node polygons and simply draw a single polygon encompassing them all. The file size didn't drop as significantly, but the detail didn't drop at all. Below is the comparison of the two polygon reduction techniques:
|
Skipped Node Polygon Reduction |
Edge following Polygon Reduction |

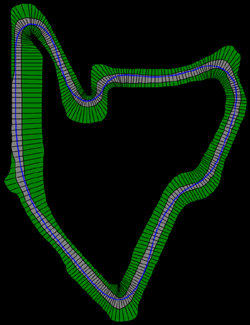

2 nodes/polygon
At this stage the two outputs are identical. And xaml files sizes are identical at about 90KB.
|
|
|
4 nodes/polygon
You can see a little detail reduction in the skipped node version. But file size reductions are drastic. 31KB for the skipped version, 40KB for edge-following.
|
|
|

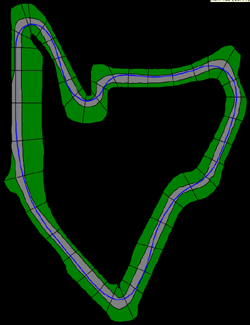

8 nodes/polygon
Now, the level of detail reduction in the skipped version is becoming noticable. Since this is a vector format it lends itself to panning and zooming, but at this point the loss of detail would become annoying when zoomed. However, file size reductions continue to out pace the edge following with 14KB and 27KB respectively.
|
|
|

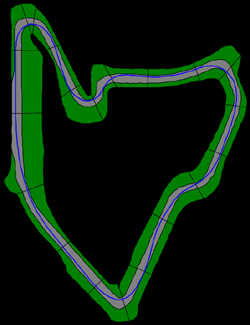

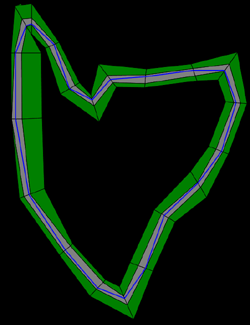

16 nodes/polygon
At this stage the skipped node format is basically unusable as a representation, while the edge following still looks as crisp as the original. File size for skipped has again halved, but really is not useful. Edge following is at 21KB, clearly slowing down in file size reduction
|
|
|
I continued with the edge following polygon reduction technique up to 128 nodes per polygon. However by 64, the file wasn't getting any smaller anymore (the verbosity of Xaml was negligible compared to the number of polygon points. The best final file size was about 17KB, which is quite acceptable for a Silverlight application, if you ask me.
Next I need to hook this Xaml up to my InSim code and then I'll be able to render race progression. This'll have to be inside of a WPF app for now, until Silverlight's CLR gets Sockets and I can port LFSLib.NET to it. Right now, i'd have to do constant server callbacks which wouldn't scale or perform well.
Labels: LFS, LFSLib.NET, live for speed, silverlight, xaml
Moonlight at Remix 07
Miguel de Icaza just posted a long entry on a
Hackathon the mono team did in the last 21 days to get some version of Moonlight ready for Remix 07 and it looks like they succeeded. Further progress information can also be found on the
Moonlight site.
Next to the Silverlight 1.1 alpha which exposes the CLR, Moonlight is probably one of my favorite tech project to follow at this time. I don't even run X anywhere anymore, just using linux for servers, so I don't think i'll ever need Moonlight. But its the availability that has me excited. I am personally rooting for a web programming model that doesn't force javascript on you for client side programming, but I don't think Win/MacOS is "cross-platform" enough to establish this as a norm, rather than a specialty plug-in. I hope Moonlight tips the adoption likelihood in Silverlight's favor.
Currently, I'm mostly waiting for a Socket API to make it into Silverlight 1.1. Once that's available, I'm going to make sure that my LFSLib can run under silverlight. This would open the door for some very cool in-brower LFS admin tools. I also have an internal DirectX implementation of the LFS smx and pth formats for rendering top down views. I've been looking at porting that to WPF, since i don't required 3D and just rendering a plane at this point. If I can reduce it further to the Silverlight Xaml subset, I could easily produce a Silverlight equivalent of LFS Spectator. But I'm getting ahead of myself. Right now I just need to get full patch X support out the door for LFSLib.NET. The protocol is complete now, I just need to complete the TCP code, do some doc clean-up and testing.
Labels: LFS, LFSLib.NET, moonlight, silverlight
Silverlight, Moonlight and a true VM for your browser
Considering my
previous rant about RIA platforms, I'm a bit slow out the gate with my
Silverlight comments. But there was a lot to digest before making half-baked comments.
While I was at MEDC, Mix07 was going on next door. I didn't even hear the cool Silverlight announcements until I got back from Vegas. But now that i've played with it, it's exactly what I had hoped for (minus a disconnected use model): We have a true VM to code against on the client side. That means the full breadth of .NET languages to control the reduced WPF presentation layer, plus with the DLR true scripting support at near-compiled performance.
As I expected, there was no linux support announced by MS and neither does it appear that they've opened a channel to the mono team. But Miguel de Icaza has addressed this issue independently with the Moonlight project and listening to the chatter on the dev list and following the wiki updates, that project is getting serious attention. I may even be better this way. I think a firefox plug-in coming from the mono team would be more willingly installed by linux users than something coming directly from MS.
We'll have to see how much more of the WPF set of Xaml gets supported by Silverlight as 1.1 moves to beta and RTM. Obviously, the way custom controls are done is not ideal right now--the way properties are acting against implementationRoot (haven't gotten deep enough to understand why it's not using the DependencyObject/Property pattern) and the shadowing of inherited properties just make for a strange experience compared to Controls in WPF, Windows Forms or even ASP.NET. Hopefully that morphs into a better model as we move along. If nothing else, the development of the promised suite of UI controls provide internal motivation to refine the model. Not that I think that DependencyObject/Property is an elegant coding pattern (at least not until that legwork moves into code generation).
But while everyone is busy committing the same UI crimes that many Flash developers have been guilty of for years, I think the real significance of Silverlight is not it's Xaml and rich media support. In my opinion the most amazing feat of Silverlight is its DOM interoperation. The Silverlight VM is accessible in both directions, complete with object serialization across boundaries. This means you can have managed code attached to DOM events, and managed code modifying the DOM itself or calling javascript in the page. With a minimum of glue, you could move all your code inside of Silverlight and even if you don't care about C# et al., you'd at least get a much higher performance javascript out of the deal. Then add the rich communications infrastructure and the hinted at socket level networking in future versions and suddenly you can have very fast, very interactive web applications that could be truly stateful and have better event handling for asynchronous operation etc.
Right now, you need some 1x1 pixel Silverlight object that everything gets channeled through, but MS has already promised that that dependency is going away. So what you really have is a VM and rich framework addressable with bytecode compiled from a huge number of potential languages in the browser. Whether you use that VM to drive your HTML, Silverlight's presentation layer or even the canvas tag is up to you. It's what I hoped that the browser manufacturers would do themselves, but as a plug-in, the chance of this capability becoming ubiquitous is even better, imho.
Silverlight 1.1 alpha is clearly a very early peek into the tech, but it works just great already. I'm curious what it will look like by the time it's an official release. And I certainly hope that by that time, MS has given the disconnected, self-hosted option some consideration. After all, when competing with Flash/Flex, one shouldn't ignore Apollo.
Labels: .net, c#, javascript, moonlight, ria, silverlight, wpf
